255 to 1020 point addressable fire alarm system LPCB

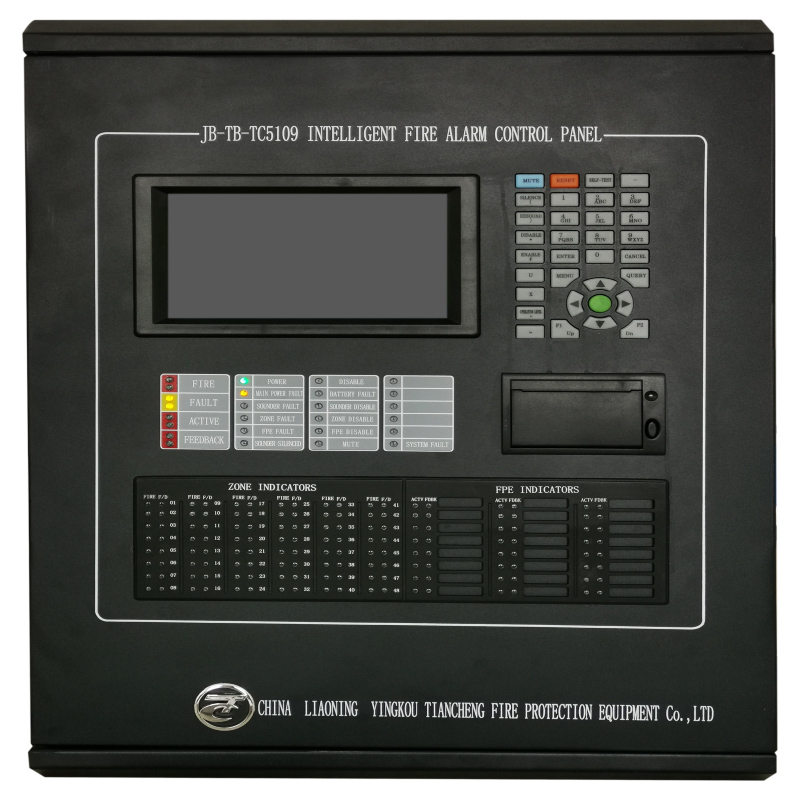

Intelligent Fire Alarm control panel LPCB fire controller 1 Loop 255points (it is also available for 2/3/4 loops).
Color menu display
Intelligent bus control mode; max 255 addressable points
per loop, max 4 loops, max 48 zones
Loop card type design:1-4 loop card can be seledted
Glass fuse per loop
Black box function
Independent controlling password for the specially needed
gas recharging units
Self-design loop protocol
Wall-mounted structure, compact and exquisite
Akzo outer coating;anti-corrosion
Language:English
Approvals：LPCB（EN54-2/4） CE

TECHNICAL SPECIFICATIONS
Volate AC230V(50HZ), Voltage range: +10%--15%
Current 1A
Outputs Fire output .Fault output .24V power output .Loop output
Capacity 1020/4 loops addressable points
LCD screen size 7-inch color LCD screen
Standby bettery 12V/12AH sealed lead acid battery*2
Dimension(L*W*H) 420mm×140mm×560mm
Operating environment Temperature:-5℃-+50℃: Relative Humidity:≤95%non- condensing
Communication interface RS485、CAN、USB

DETAILS

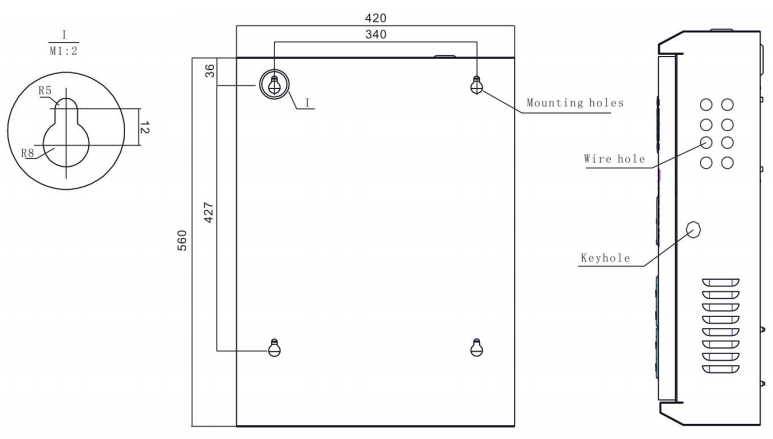

The control panel is mounted on the wall through 4 mounting holes, the dimensions of the mounting holes are shown in the picture.

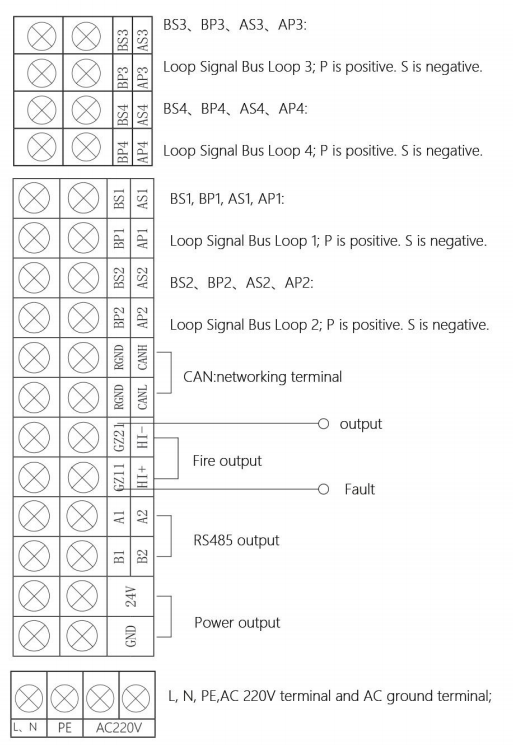

The right side of the control panel has 8 wiring holes, which are easy for wiring between the control panel and field devices.
There are also 5 knock holes at the top, if the holes on the right side are not enough.
