Conventional fire alarm systems

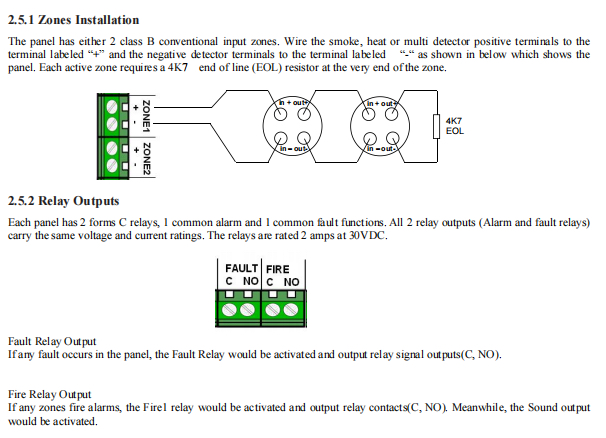

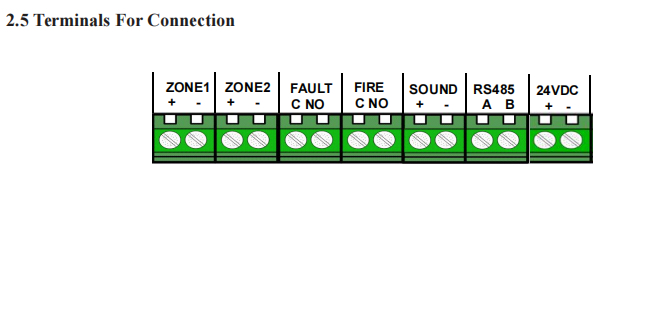

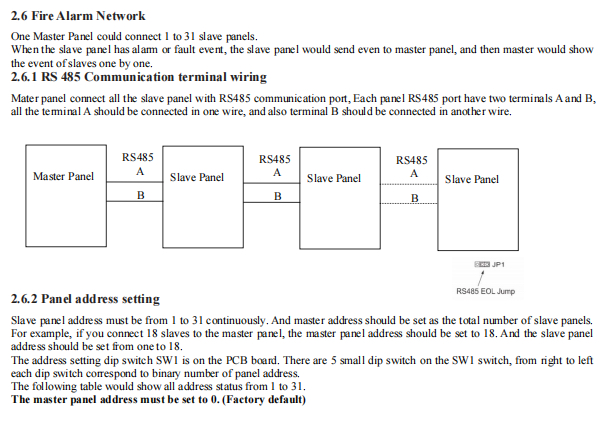

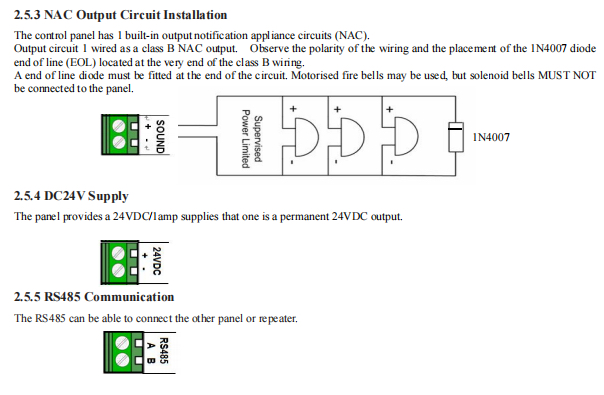

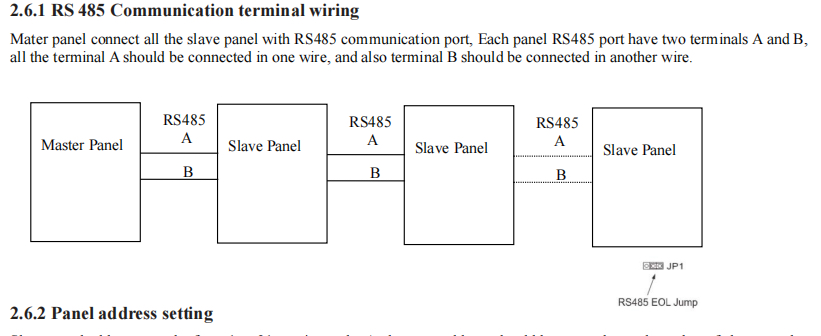

2 fire zone Mini conventional fire alarm control panel
Small business fire security alarm system. CP-1002 Mini size designed conventional fire alarm 2 zone panel is used for family hotel fire security, restaurant fire security, store or shop fire security alarm. Automatic fire alarm system is a device that automatically detects, displays and sends out fire alarm when fire occurs to the protected object. It is widely used in modern factories, material warehouses, high-rise buildings, computing centers and other buildings, to ensure the safety of people's lives and property plays a huge role. Automatic fire alarm system is composed of trigger device, fire alarm device, fire alarm device, power supply and linkage device with other auxiliary control function. Conventional 2-zone multi-wire fire alarm controller, equipped with any 2-wire smoke, temperature, alarm button and alarm bell, sound and light. At the same time can be equipped with security alarm equipment. More fire alarm systems with free technical support at conventional fire alarm Description: 1. The Mini fire alarm control master panel and slave panel each has 2 zones and each zone can equip Max.30 detectors and call points. 2. It should be installed, commissioned and maintained by suitably qualified service personnel with reference to IEE regulations and any statutory requirements. 3. The 2 zones alarm panel has 1 alarm sound output zones (bell zones), which can equip max.16 sounders for total max. 1A/24V power supplied. 4. The panel (master or slaver) has 24V auxiliary power output supply 2A/24V with fire 1, fire 2 relay output and fault relay output. 5. It is external DC24V power supplied with backup battery. 6. It supports detector head removal and easy for repair or maintenance. 7. It has Test/reset, silence alarm and Evacuate button for easy panel operation. 8. It has indicators of zone1 alarm /fault, zone2 alarm /fault, Sound alarm, and sound fault LED. That clearly showed detectors and sound circuit staturs. 9. There is one master fire alarm control panel and it can work with Max.31 same slaver panel. 10. The master fire control panel will communicate slaver panel one by one and fault will be showed if no response is received. 11. Alarm and fault events of panel No. and zone No. will be showed one by one on Master fire control panel. Specification: 1. System Power Supply: It is external 22-26VDC power supplied. (With upgrade version with internal power supply available) 2. Standby current: <50mA 3. Alarm current(not include the others): <150mA 4. Detector Voltage (VDC): 24V 5. Number of sensor zones: 2 zones 6. Max. number of detectors per zone: 30 7. Alarm Voltage: 24V 8. Number of alarm zone: 1 9. Max. Alarm current per zone: 300mA 10. Max. number of sounders per zone: 16 11. Max. sounder supply current in fire: 1A/24V 12. Fire fault relay contacts loads: 2A/24V 13. Panel weight without battery: 520g 14: Diameter: 108mm*143mm*40mm upc code: 782123753055 ean code: 0782123753055
$98.00
Fire fighting gas extinguish alarm panel 4 zone
The automatic extinguisher control panel is designed in accordance with European standards EN54-2 and EN54-4 Fire Detection and Fire Alarm systems - Control and Indicating Equipment and EN12094-1 Fixed firefighting systems - Components for gas extinguishing systems Part 1: Requirements and test methods for electrical automatic control and delay devices. The control equipment is a combined fire alarm control panel and extinguishing system and has four detection zones, any or all of which are capable of contributing to the extinguisher release decision. Control panels have an integral, mains powered battery charger and power supply designed in accordance with the requirements of EN54-4. Technical specification Table 1 - Electrical specifications ITEM ELECTRICAL RATING COMMENT Size 383 mm W x 295 mm H x 87 mm D metal enclosure Weight 5 kg Mains supply 90 to 270VAC, 50Hz/60Hz Mains supply fuse 3 Amp ( F3A L250V) Replace only with similar type Power supply rating 3 Amps total including battery charge 28V +/- 2V Maximum ripple voltage ≤200 millivolts Battery type Two 12 Volt sealed lead acid in series. 7Ah maximum Battery charge voltage 27.6VDC nominal Battery charge current 0.7A maximum Current draw in mains fail condition 0.095 Amps With buzzer sounding Current draw in second stage alarm 0.235Amps Two zones in fire(470 ohm in circuit) Current draw in post discharge condition 0.310Amps solenoid outputs active Maximum current draw from batteries 3Amps With main power disconnected NAC outputs(sounder & bell circuit) 26 to 28V DC Fused at 500mA with electronic fuse 1.2Amp total load over all circuits Fault relay contact rating 2A /30VDC maximum for each Volt free changeover contact Fire relay contact rating 2A /30VDC maximum for each Volt free changeover contact First stage contact rating 2A /30VDC maximum for each Volt free changeover contact Second stage contact rating 2A /30VDC maximum for each Volt free changeover contact Extract contact rating 2A /30VDC maximum for each Volt free changeover contact Zone quiescent current 4mA maximum Terminal capacity 0.5mm2 to 2.5mm2 solid or stranded wire Number of detectors per zone ≤30 PCS conventional detectors Number of sounders per circuit Dependent on type and current consumption Detection circuit end of line 4K7±5% 1/2 Watt resistor 3K-5.6K 1/2W Monitored input end of line 4K7±5% 1/2 Watt resistor 3K-5.6K 1/2W Sounder circuit end of line 10K±5% 1/2 Watt resistor 6.8K-20K 1/2W Extinguishant output end of line 10K±5% 1/2 Watt resistor 6.8K-20K 1/2W No. of detection circuits Four 21 to 28V DC No. of sounder circuits Four 21 to 28V DC Extinguishant release output 21V to 28V DC. Maximum load 2 Amp Extinguishant release delay time Adjustable 0 to 75 seconds 5 second steps SIL, AL, FLT, RST inputs Switched – min resistance 0 ohms, max 1k ohms Detector alarm threshold 270 ohms to 1K ohms Call point alarm threshold 150 ohms to 1K ohms Short circuit threshold 0 ohms to 130 ohms Status unit/Ancillary board connection Two wire RS485 connection with electronic fuse. Max. of 32 units-RS485 data cable The controller is connected with Conventional Smoke Detector, heat Detector, Manual call point, on-site emergency start/stop button, aerosol extinguishing control device (or cylinder control device), weighing device, exhaust indicator light and other equipment. Constitute a complete automatic fire alarm and fire fighting system. Download manual and diagram for fire alarm and fire fighting system. Conventional Fire Fighting Panel Key Specifications/Special Features Four Style B（Class B）Initiating Device Circuits（IDCs）。 All zones accept two-wire smoke detectors and any normally-open contact devices. One built-in Fire Fighting Ouput. 24-volt operation. Resettable four-wire smoke detector power＠500 mA. Non-resettable power＠500 mA. One-man walk-test programmable for silent or audible test. Disable/Enable control per IDC. Reverse polarity protection There are 6 buttons on the panel, Emergency evacuation, external muffler, Self-test/Reset, Internal muffler, exhaust fan, Emergency Stop Control lock allows and disables key function, manual and automatic switching modes The standby 12V/4.5A power supply is placed at the bottom of the chassis. If the battery polarity is incorrect, the yellow battery fault message is displayed on the panel. Emergency gas release: Pull out the yellow plastic box panel on the panel, and there is a red button inside. Press the button, the controller will enter the "emergency start" delay state, showing a countdown of 10 seconds, and send a start signal after the countdown is over. L Controller has 4 independent alarm area (ZONE1-ZONE4), can be connected with multi-line smoke, temperature, manual alarm Button and other input equipment, can independently complete equipment fault detection and alarm function. L The controller has three sound and light alarm outputs (SounD1-SOUND3), which can be easily used for external emergency alarm in case of fire . L the controller has one 24VDC/1A POWER output (power-24 v,0V) to supply POWER to external devices. L Controller has 1 way fault, 1 way fire alarm relay output. L The controller has remote mute, remote alarm test, remote fault test and remote reset functions. L The controller has remote emergency start, remote emergency stop and remote hand/automatic mode switching functions. L The controller has cylinder pressure undervoltage signal receiving function and gas release feedback signal receiving function. L The controller has valve function. L The controller can set 0-75s delay valve function. L The controller has the function of manually opening and closing the exhaust fan. L The controller has RS485 interface, which can transmit alarm information with the upper computer or the floor repeat display. 2. Technical indicators Remarks of electrical parameters of the project Working power supply DC12V-DC28V Ripple voltage is 200 mV The static current is 0.12A The alarm current is 0.235A The output current is 24/3a Relay output contact capacity 24V/2A, 220V/1A Acoustic and optical output power of each channel 24V/1A (Max) Static currents in alarm zone (Zone1-4) 0mAminimum, 2mAmaximum A twisted pair cable with a lead of 0.75mm2 to 2.5mm2 is recommended The number of detectors in each alarm zone (ZONE1-4) is 25 Detector, monitor input terminal resistance 6K8±5% 1/2W Acousto-optic alarm output terminal resistance 10K±5% 1/2W Controller alarm area (ZONE1-ZONE4) alarm resistance 1K - 390 Parallel diodes 1N4004 or 1N4007 are recommended for valve output Zone1-zone4: input alarm equipment for multi-wire smoke sensing, temperature sensing, manual alarm button, etc. ZONE1 and ZONE2 participate Linkage "and" control output, ZONE3 and ZONE4 only alarm function, do not participate in linkage control output. It is recommended that ZONE1 be connected to multiple cables - type smoke detector, ZONE2 connected with multi - line temperature detector. When both ZONE1 and ZONE2 alarm, the controller will enter the linkage loss Out (The controller is in automatic state) state Fire alarm and automatic fire control must be installed in communication room, warehouse, factory.
$169.00 $139.00Save: 18% off
FACP small business fire security equipment
4-zone to 16-zone FACP (Fire Alarm Control Panel), which uses conventional input devices. The panel accepts water flow devices, two-wire smoke detectors, four-wire smoke detectors, pull stations and other normally-open contact devices. Outputs include four Notification Appliance Circuits (NAC, SOUND1-4), three standard Form-A relays (alarm, trouble and supervisory) and an EIA-485 port to interface with remote annunciators and optional remote relay modules. The FACP is field programmable via the panel keypad. It also supervises all wiring, AC voltage and battery level. The fire alarm system instruction and manual can be downloaded at conventional fire alarm Product Features （1）4,8,16 Class B Initiating Device Circuits (IDCs) （2）All zones accept conventional detectors and any normally open contact device （3）Four Class B Notification Appliance Circuits (NACs) （4）One Form-A Alarm Relay （5）One Form-A Trouble Relay （6）One Form-A Supervisory Relay （7）3.0 amps of system power （8）Max 30 conventional detectors in one zone. （9）Auto/Manual mode setting enable walk test. （10）Each Zone can be disabled, （11）Sound output can be disabled. (12) Manual active sound output enabled. (13)Able to report short and broken circuit of detection zones. （14）Designed with standby batteries and space provision for two sealed lead-acid batteries. （15）Testing and disable functions. （16）Can connect max 32 repeater panels by RS485 communication port （17） Dimensions : 14.57" (37 cm) long X 17.32" (44 cm) high X 3.94"(10cm). （18） Weight: 6.6kg (without battery)
$169.00
Smoke detector optical fire alarm sensor 2 wire EN54
The device is photo-electronic detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm control panel. Two LEDs on each detector provide local 360° visible alarm indication. They flash every 3~5 seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The detector can be reset only by a momentary power interruption. Find datasheet and installation manual of fire alarms at conventional smoke detector Features and Benefits: Compatible with all the conventional fire alarm control panel Un-polarized wire input Wide range of operating voltages Unique optical sensing chamber Built in microprocessor intelligent software Two LEDs blink standby, provide 360° visibility Insect-resistant screening Twist-on mounting base with tamper lock Drift compensation and smoothing algorithms Remote Indicator LED can be connected. Technical Specifications Diameter: 103mm Height (including mounting base): 55 mm Weight: 155 g Operating Temperature Range: -10°C to 50°C Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing Latching Alarm: Reset by momentary power interruption System Voltage (nominal): 24 VDC (9V~ 28VDC) Standby Current: 60 μA @ 24VDC Alarm Current: 30 mA @ 24VDC
$9.50
Audio visual alarm conventional fire alarm warning device
Suitable for using with 2 wire conventional fire alarm control panel. 80dB~115dB Fire evacuation sound and light alarm device Fire beacon DC24V power two-wire, non-polarized TCSG5228F Conventional Sounder Strobe TCSG5228F Conventional Sounder Strobe adopts 2 wires (24V power). It is mainly installed in public places. It generates a kind of optical and visual alarm used to warn people in field when fire occurs. With plug-in structure, reliable performance, simple and easy installation, attractive appearance, it has high reliability and good anti-interference functions. It connects to the fire alarm control panel by using an addressable linkage control module. More details and instruction can be found at fire alarm system Features 1. DC24V power two-wire, non-polarized. 2. After activated, it will generate strong audible and visual alarm signal. 3. Attractive appearance, convenient and reliable installation. Technical Specifications 1. Operating voltage: Power bus voltage: DC24V Range allowed: DC19V～DC28V 2. Operating current: Power action current≤50mA 3. Operating environment: Temperature: -10°C～+50°C Relative Humidity: ≤95 %( 40±2 °C) Indoor (Non-residential) 4. Dimension: 140mm×115mm×55.3mm (L×W×H) 5. Alarm voice: 80dB~115dB (A weighted) 6. Flashing frequency: 1Hz～2Hz 7. Cycle of changing level tone: 3.5S～4.5S 8. Weight: 200g 9. Standard: GB 26851-2011
$10.50
Heat Detector Fire Detector Heat sensor
Conventional Probe Heat Detector Fire Detector Heat sensor Temperature alarm The device is intelligent sensors that utilize a state-of the-art thermistor sensing circuit for fast response. These sensors are designed to provide open area protection with 50 foot spacing capability. The device is a rate-of-rise temperature sensor with 135°F fixed temperature alarm. The device is a rate-of-rise with fixed temperature alarm thermal detector utilizing a state-of-the-art dual thermistor sensing circuit. These detectors are designed to provide open area protection with 50-foot spacing capability, and are to be used with compatible control panels only. Two LEDs on each detector light to provide 360°visibility of the detector indication. Features and Benefits Compatible with all the conventional fire alarm control panel Unpolarized wire input Wide range of operating voltages High precision electronic thermistor Built in microprocessor intelligent software Two LEDs blink standby, provide 360° visibility Insect-resistant screening Twist-on mounting base with tamper lock Remote Indicator LED can be connected. Download fire alarm system installation manual at heat detector Technical Specifications Diameter: 103mm Height (including mounting base): 55 mm Weight: 155 g Operating Temperature Range: -10°C to 50°C Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing Latching Alarm: Reset by momentary power interruption System Voltage (nominal): 24 VDC (9V~ 28VDC) Standby Current: 40 μA @ 24VDC Alarm Current: 30 mA @ 24VDC Fixed Temperature Rating: 57°C (135°F) Rate of Rise Detection: Responds to greater than 15°F/min
$10.00
High Sensibility smoke and heat detector fire alarm
smoke heat detector The detector is a combined smoke and heat detector with photoelectronic sensor and heat thermistor together. This detector is designed to provide open area protection and to be used with most conventional fire alarm control panel. Two LEDs on each detector provide local 360° visible alarm indication. They flash every 3~5 seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The detector can be reset only by a momentary power interruption. Features and Benefits Compatible with all the conventional fire alarm control panel Unpolarized wire input Wide range of operating voltages Unique optical sensing chamber and High precision electronic thermistor Built in microprocessor intelligent software Two LEDs blink standby, provide 360° visibility Insect-resistant screening Twist-on mounting base with tamper lock Drift compensation and smoothing algorithms Remote Indicator LED can be connected. Complete fire alarm system category can be downloaded at fire security system Technical Specifications Diameter: 103mm Height (including mounting base): 55 mm Weight: 155 g Operating Temperature Range: -10°C to 50°C Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing Latching Alarm: Reset by momentary power interruption System Voltage (nominal): 24 VDC (9V~ 28VDC) Standby Current: 60 μA @ 24VDC Alarm Current: 30 mA @ 24VDC Fixed Temperature Rating: 57°C (135°F) Rate of Rise Detection: Responds to greater than 15°F/min
$9.00
6 Inch 24VDC fire Alarm Siren Electric Bell fire system
The bell remains the most commonly used alarm for fire evacuation system, for wall applications, indoors. They are designed to be used in 24 volt DC systems. Specifications Voltage ranges: 20vdc to 28vdc (Nonpolarity) Power and current consumption: 1W, 38ma@24vdc(maximum) Number of standard: EN54-3 Sound level：80dB（A）@1M (minimum) Service Use: Fire alarm, general signaling, burglar alarm Environment type: Type A (indoor) Input terminal Wire Gauge: 0.28 mm2 to 1.5 mm2 Operating Temp.: -10℃ to +55℃ Operating Humidity Range: 10% to 93% Relative Humidity ( Non-condensing) Material of cover: Aluminum Dimension: 150mm×50mm（D*H) (Without bracket) Weight: Net Weight 342g, Gross Weight 395g Download fire alarm system instruction and manual at fire alarms Wiring The system designer must make sure that the total current drawn by the devices on the loop does not exceed the current capability of the panel supply, and that the last device on the circuit is operated within its rated voltage. When calculating the voltage available to the last device, it is necessary to consider the voltage drop due to the resistance of the wire. The thicker the wire, the smaller the voltage drops. Wire resistance tables can be obtained from electrical handbooks.
$9.00
Conventional manual call point pull down station button
The conventional manual call point designed for conventional fire alarm system for reporting fire or emergency condition by its PUSH IN/PULL DOWN handle latches. One 470 ohm resistor is used on the PCB board between Zone+ and Zone- when the switch inside is closed. So the conventional manual call point is only used with conventional fire alarm control panel, it is forbidden to be used to other system. Conventional Manual Call Point, Operates by Advanced MCU Expert Algorithm Software. Fire alarm system category and installation instruction, datasheet, manual can be downloaded at fire alarm category Technical Specifications Ordering Information Individual(1 units) Dimensions (w x d x h millimetres) Weight 140x105x45 220g Dimension: 140mmX105mm Height: 45 mm Weight: 220 g Operating Temperature Range: -10°C to 50°C Operating Humidity Range: 10% to 93% Relative Humidity, Non condensing Latching Alarm: Reset by momentary power interruption Top Side Figure 1. Dimension of manual call point: Electrical Ratings System Voltage (nominal): 24 VDC (9V~ 28VDC) Standby Current: 60 μA @ 24VDC Alarm Current: 10~30 mA @ 24VDC call-point based upon our industry standard series housing, and features easy to install, push-fit wiring terminals. The unit can support either a 'Frangible Glass' element or a 'Non Frangible Plastic' element. Push in and Pull Down Call Point Can be reset by key Red colour Fire proof materials 470 Ohm Resistance Modern style Call Point
$9.50
Conventional fire alarm sounder strobe
75dB～115dB Fire alarm conventional 2 wire suitable for all conventional fire alarm control panel TCSG5230F Conventional Sounder Strobe Voltage：Power: DC24V (19V～28V) Current：Standby Current: ≤0.5mA; Action Current: ≤15mA Operating Environment：Temperature: -10°C～+50°C;Relative Humidity: ≤95%（40±2°C） Sound Level：75dB～115dB (A weighted) Dimension：φ101mm×51mm Approval：CCCF Fire alarm system installation instruction and complete category can be downloaded at fire sounder
$9.50
Fire sounder and lighter outdoor alarm
Outdoor sound flash light alarm. Suitable for patrol, fire, medical and so on. The alarm sound is strong, can obtain the visual and auditory shock effect with the low voltage and low power input. Product technical parameters 1. Working voltage: DC12-30V 2. Working current: ≤40mA 3. Working environment: -20℃ ~ +60℃ 4. Relative humidity: 0%~95%RH 5. Sound intensity: greater than or equal to 105dB (at a distance of one meter) 6. Product weight: 360g net weight 7. Flash intensity: greater than or equal to 1.2WS More details and complete fire alarm system category can be found at fire alarm
$24.00
Break glass manual fire alarm button
The conventional manual call point designed for conventional fire alarm system for reporting fire or emergency condition by its button latches. The call point has one 300 ohm resistor is used on the PCB board between Zone+ and Zone- or one relay contact (NO, COM, NC ) output when the button is pressed. INSTALLATION This manual should be left with the owner/user of this equipment. The call points should be installed in a position where they will not be subjected to mechanical stresses , and where the temperature is within the operating temperature range. Areas where there are , or are likely to be, aggressive substances should be avoided. Complete conventional fire alarm system manuals at manual call point SPECIFICATIONS Operating Voltage Range: 9～32VDC Volts Nominal Operating Resistance: 300Ω Relay Contact Ratings: 2A/30VDC Operating Humidity Range: 95% RH, Non-condensing Operating Temperature Range: -10°C to 50°C (14°F to 122°F) Dimensions: W89mm ,H93mm, D26mm Base Dimensions: W87mm ,H87mm, D31.5mm Weight: Net Weight 125g (with base) Colour/Case Material: Red/ ABS
$6.50
Conventional Manual Release Station for gas system
Fire fighting gas system The Manual release is connected with Fire fighting panel. There are three buttons on the station, one is START button, and another one is STOP button. When the START button is pressed, you can press RESTORE button to restore the start button. Fire alarm and automatic fire fighting system component with instruction. Learn to install fire alarm system easy with video guidegas release fire fighting
$10.00
Gas Release Lamp indicator gas extinguisher system
24v conventional gas extinguisher and fire alarm system compatible gas release lamp 1. Comptaible with all the fire fighting panel 2. DC24V powered 3.LED light long life 4.Easy Installation Learn to install fire alarm system. Step by step instruction of fire alarm and fire automatic fighting system fire alarm fighting
$18.00
Remote Indicator LED work with detector fire alarm
Conventional fire alarm system remote LED flash lighting alarm The device is remote LED uses a state of-the-art designs. This LED is designed to be used with detectors. One 8mm LED provide local 360° visible alarm indication. They flash with the same as detector that be connected. Complete fire alarm system category and installation instruction manual can be downloaded at conventional fire alarm Features and Benefits Compatible with all the conventional fire alarm control panel 8mm Big Size LED Outside two holes provide 83mm(USA) Inner two holes provide 59mm(Europe) Wiring Terminals provided on the PCB board Technical Specifications Dimension: 102X86mm Height (including mounting base): 32 mm Weight: 50 g Operating Temperature Range: -10°C to 50°C Operating Humidity Range: 10% to 93% Relative Humidity, Non condensing Latching Alarm: Reset by momentary power interruption Electrical Ratings System Voltage (nominal): 3 VDC Alarm Current: 20 mA @ 24VDC
$5.00
4 zone fire alarm control panel
The fire alarm control panels (4 Zones, 8 Zones, and 16 Zones) provide all of the sophisticated features required of a leading edge conventional fire alarm system along with the simple operation and efficient installation methods demanded by both installers and building users. The panel can be flush or surface mounted and the generously sized metal back box allows ample space for rear or top cable entries. A comprehensive range of auxiliary devices is available to operate with the fire control panels including optical, ionization, photoelectric, and heat detectors. Each of the system components has been specifically designed to operate as part of the system. This provides assurance that the control panel, smoke detectors,interface devices and the ancillary components are all fully compatible with one another and that the full range of system functionality is supported by each device. Installation manual can be downloaded at alarm system support 1.1 Product features The panels have the following key features: 4, 8, or 16 conventional input zones. 2 notification appliance circuits (NAC, Sounder) with built-in synchronization forANSI 3.41and Gentex. The panel comes with a 3 amp power supply. Dedicated alarm and fault relays. 1 RS485 can be able to connect repeaters. Enclosure supports two 12V, 7Ah backup batteries. 1.2 Electrical specifications Primary AC 200 to 240VAC 50/60 Hz Standby current: 50mA@220VAC,Alarm current: 85mA@220VAC Power supply rating 3Amps @ 24VDC Maximum Battery Charging Current 0.98 Amps @ 26VDC Initiating Device Circuits 4 Zones Alarm Zone 1, 2, 3, & 4 Initiating Device Circuits 8 Zones Alarm Zone 1, 2, 3, 4, 5, 6, 7, & 8 Initiating Device Circuits 16 Zones Alarm Zone 1, 2, 3, 4, 5, 6, 7, 8,9,10,11,12,13,14,15, &16 Normal Initiating Operating Voltage 23VDC, Maximum 26VDC, regulated Short Circuit Initiating Current (per zone) 35mA Maximum Maximum Initiating Resistance (per zone) 10 ohms Initiating End-of-Line Resistor 4K7 ohms, 1/2W 5% Standby Detector Current (per zone) 4mA maximum Maximum Detector Count (per zone) 30 detectors Initiating Cabling Type 18AWG Twisted Shielded pair (14 – 18 AWG) Detector Base Impedance 430 ohms Notification Appliance Circuits(Sounder) 2 NACs, SpecialApplication Maximum NAC Current Rating 1Amp maximum per circuit NAC End-of-line Resistor 10K ohms 1/2W 5% FAULT Relay rating 2A& 30VAC, resistive Alarm(Auxiliary ) Relay rating 2A& 30VAC, resistive Enclosure Dimensions 353mm(L)×282mm(H)×101mm(W) Net Weight 3.1kg (Without batteries)
$139.00
Gas extinguish system maintenance switch
Conventional Maintenance Switch For Gas Extinguisher System This MAINTENANCE panel is a key switch, which disconnects actuation circuits in the system to prevent accidental discharge during maintenance operations. Two “LEDS” indicate “SYSTEM ARMED” and “SYSTEM INACTIVE”. When the key is inserted and turned towards “SYSTEM INACTIVE”, the red LED illuminates and the green LED indicating “SYSTEM ARMED” turns off. The key can only be removed in the “SYSTEM ARMED” position. This panel is also available with the key removable in both the “ARMED” and the “INACTIVE” positions. The information is silk-screened on a two-gang stainless plate. Switch rated at 5A 250VAC， the DC rating is 5A up to 30VDC. LEDS rated at 10mA each for a total current draw of 20mA. Video guidance to instruct how to install gas fire extinguishing fire alarm and fire automatic fighting system fire fighting
$19.00
16 zones Conventional Fire Alarm Repeater Panel
Fire floor display and repeat panels have the following key features: 16 conventional repeater display zones. Fire alarm output relay and 1 fault output relay . Fire alarm output with 24VDC. RS485 can be able to connect the other panel. You can download the complete fire alarm system category and installation instruction manual fire alarm installation Specifications Power supply: 16VDC to 30VDC Current of power: Standby current: ≤15mA, Alarm current: ≤75mA Relay contact capacity: 2A@24VDC Buzzer level: 80dB@1m. Protection level: IP55 Communication mode:RS485 (Wires: RVSP type,1.0MM2 to 2.0MM2) Dimension of enclosure: 200mm(W)*91mm(H)*45mm(D) Material of enclosure:ABS, White Weight: 350g. Hole of enter wires: 1/2 inch(12mm) Repeater status indication and button operation FIRE ALARM Status: When a fire alarm occurs, the corresponding zone red LED flashing and the internal buzzer sounds. When “Silence” button pushed, the alarm zone LED lights steady and the buzzer silenced. When another new fire alarm occurs, the new zone red LED flash and the buzzer sound again. In the fire alarm status, the fire alarm “FIRE OUT” relay active and output “NO, NC, C” relay contacts and 24vdc power output. FAULT Status: When a fault event occurs, the corresponding zone’s yellow LED flashing and the internal buzzer sounds. When “Silence” button pushed, the fault zone LED lights steady and the buzzer silenced. When another new fault event occurs, the new zone yellow LED flash and the buzzer sound again. In the fault alarm status, the fault alarm “FAULT OUT” relay active and output “NO, NC, C” relay contacts. Normal status: When fire alarm panel’s fire or fault event restored, the fire alarm panel would send commands to let the repeater to the Normal Status. RUN LED: The “RUN” LED would keep light steady when the power supply in normal status. COMM. LED: The “COMM.” LED would flash once about three to five seconds in normal communication status. SILENCE LED: In the fire or fault alarm status, press the “Silence” button the “SILENCE” LED would turn on . TEST LAMP: In normal status, press “TEST” button would have a lamp test. SILENCE SOUND: In fire or fault status, press “SILENCE” button would silence the alarm sound. RESET: In the “SILENCE” status,press “RESET” button once the repeater would return to the Normal Status.
$67.00More Information
